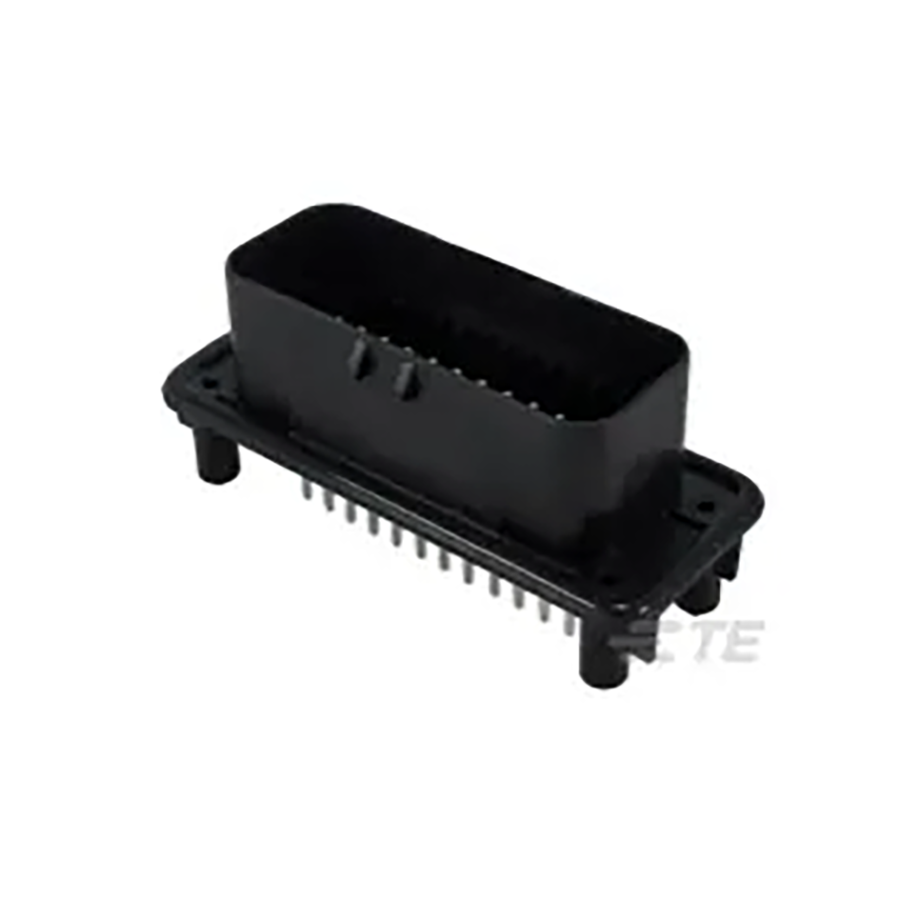

776231-1
Manufacturer:
TE Connectivity
Mfr.Part #:
776231-1
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:35 Pitch:3.9878 mm
| Parameter | Value |
|---|---|
| Length | 76.962 mm |
| Width | 32.1056 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 34.25 mm |
| Packaging | Tray |
| Depth | 32.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.9878 mm |
| Number of Terminals | 1 |
| Current Rating | 17 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 35 |
| Connector Type | Header |
| Number of Positions | 35 |
| Number of Rows | 3 |
| Row Spacing | 3.9878 mm |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Max Voltage Rating (AC) | 250 V |
| PCB Thickness | 1.5748 mm |
| Tab Thickness | 1.3 mm |
| Number of Signal Positions | 35 |
Stock: 252
Distributors
pcbx
pcbxUnit Price$5.37264
Ext.Price$5.37264
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.37264 | $5.37264 |
| 10 | $4.65110 | $46.51100 |
| 25 | $4.00553 | $100.13825 |
| 50 | $3.44957 | $172.47850 |
